| S-008 : USA 'UNIVERSAL' Special Steel Wire Rope, Grad T/S 1960 N/MM² | |
|---|---|
| ประเภทสินค้า : | S-008 : USA 'UNIVERSAL' Special Steel Wire Rope, Grad T/S 1960 N/MM² |

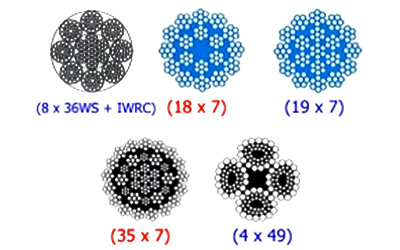

| ขนาด mm. | เกลียว |
| 6.0 mm. | 18x7, 19x7 |
| 7.0 mm. | 18x7, 19x7 |
| 8.0 mm. | 8 x (WS)36, 18x7, 19x7, 4x39 |
| 9.0 mm. | 8 x (WS)36, 18x7, 19x7, 35x7, 4x39 |
| 10.0 mm. | 8 x (WS)36, 18x7, 19x7, 35x7, 4x39 |
| 11.0 mm. | 8 x (WS)36, 18x7, 19x7, 35x7, 4x39 |
| 12.0 mm. | 8 x (WS)36, 18x7, 19x7, 35x7, 4x39 |
| 12.5 mm. | 8 x (WS)36, 18x7, 19x7, 35x7, 4x39 |
| 12.7 mm. | 8 x (WS)36, 18x7, 19x7, 35x7, 4x39 |
| 13.0 mm. | 8 x (WS)36, 18x7, 19x7, 35x7, 4x39 |
| 14.0 mm. | 8 x (WS)36, 18x7, 19x7, 35x7, 4x39 |
| 15.0 mm. | 8 x (WS)36, 18x7, 19x7, 35x7, 4x39 |
| 16.0 mm. | 8 x (WS)36, 18x7, 19x7, 35x7, 4x39 |
| 18.0 mm. | 8 x (WS)36, 18x7, 19x7, 35x7, 4x39 |
| 19.0 mm. | 8 x (WS)36, 18x7, 19x7, 35x7, 4x39 |
| 20.0 mm. | 8 x (WS)36, 18x7, 19x7, 35x7, 4x39 |
| 22.0 mm. | 8 x (WS)36, 18x7, 19x7, 35x7, 4x39 |
| 24.0 mm. | 8 x (WS)36, 18x7, 19x7, 35x7, 4x39 |
| 25.0 mm. | 8 x (WS)36, 18x7, 19x7, 35x7, 4x39 |
| 25.4 mm. | 8 x (WS)36, 18x7, 19x7, 35x7, 4x39 |
| 26.0 mm. | 8 x (WS)36, 18x7, 19x7, 35x7, 4x39 |
| 28.0 mm. | 8 x (WS)36, 35x7, 4x39 |
| 29.0 mm. | 35x7, 4x39 |
| 32.0 mm. | 35x7, 4x39 |
| 34.0 mm. | 35x7, 4x39 |
| 36.0 mm. | 35x7 |
